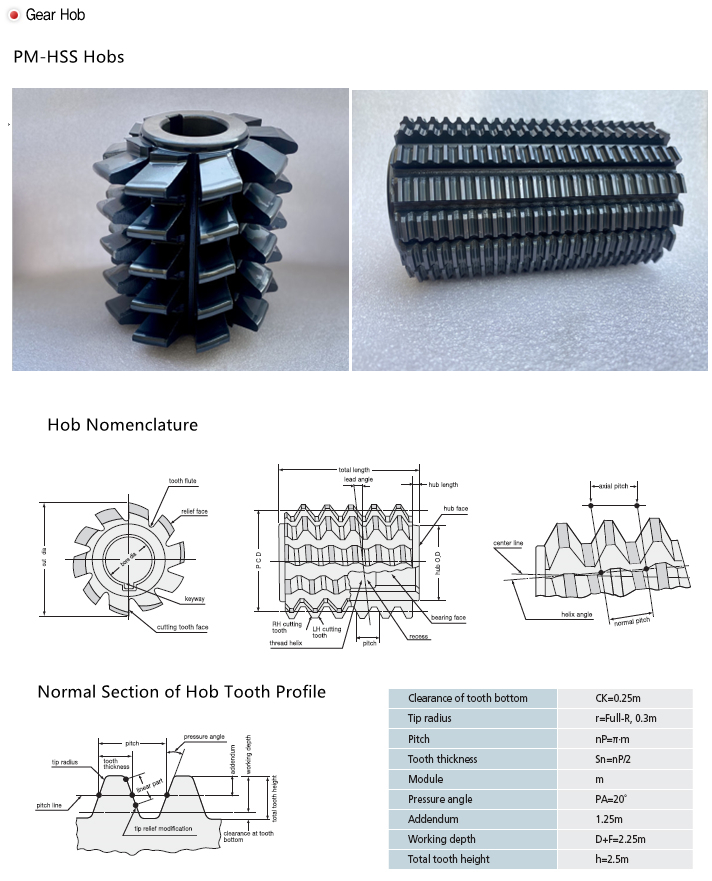

Gear Hob Structure
Hob is the cutting tool which has the rack cutting teeth on its body as the shape of a screw. The basic rack (rack cutting teeth) projects the rotating hob which has teeth in a screw pattern to generate the gear. Work piece is rotated so that it may gear with this basic rack, and feeding a hob in the lead direction generates the gear.
Please get more details of precision gear hobs on www.civp.cn.
