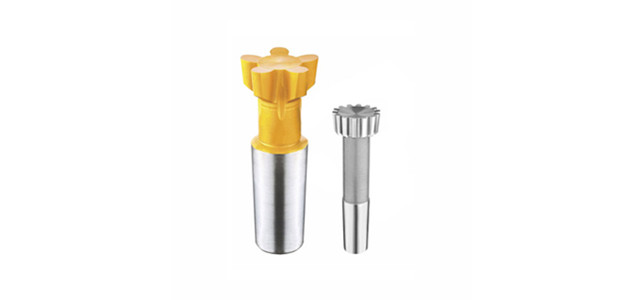

Shank-type shaper cutter with DIN 5480

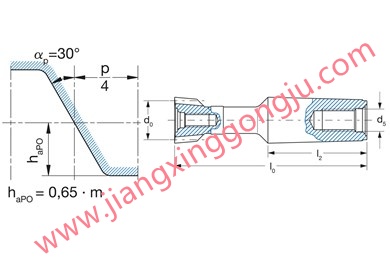

Tooth profile to DIN5480 standard
Module: m0.6-m5
Number of teeth: Z10-16
Pressure angle: 30°
Length: 70-150mm
The standard gear shaping tools are manufactured from HSS M35, ASP2052 and S390 material with an Alcrona Pro coating. The range of stock gear cutting tools also offers customers great flexibility. Here you will find the available models in the category shank-type shaper cutters DIN5480.
