Solid-type DP hob cutter for spur and helical gears
2021-11-11 09:38:08
jiangxingTools
3222

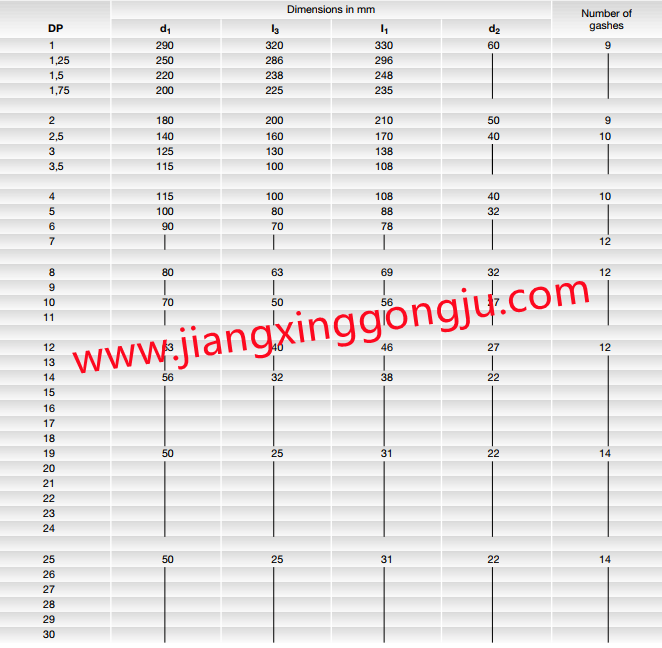

Solid-type DP hob cutter for spur and helical gears
module: diametral pitch
20° pressure angle
basic profile: ha0 = 1.25 · m, ?a0 = 0.3 m
quality grade A to DIN 3968
single start right-handed, with keyway
KHSS-E EMo5Co5 (M35), HSS-PM (S390), TiN, AP coated, relief ground to DIN 3972 BP Ⅱ profile
Please get more about dp hob cutters and gear cutting tools on our new website.
