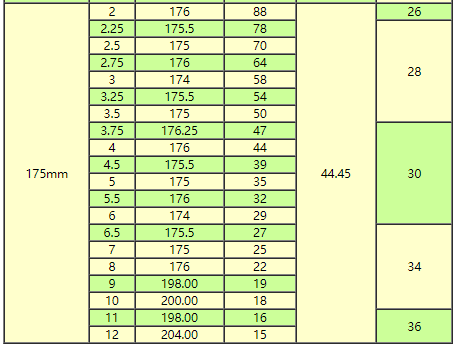

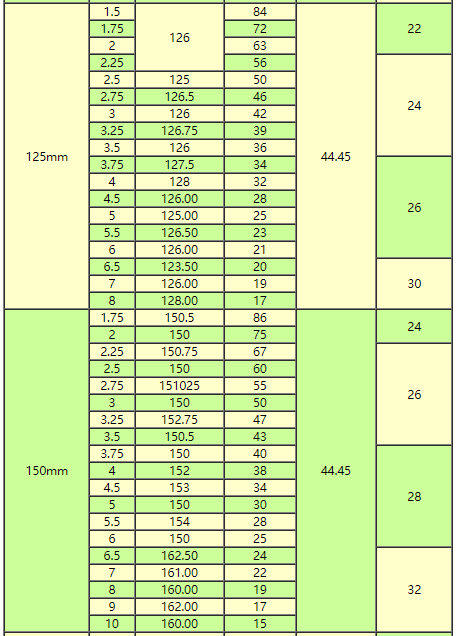

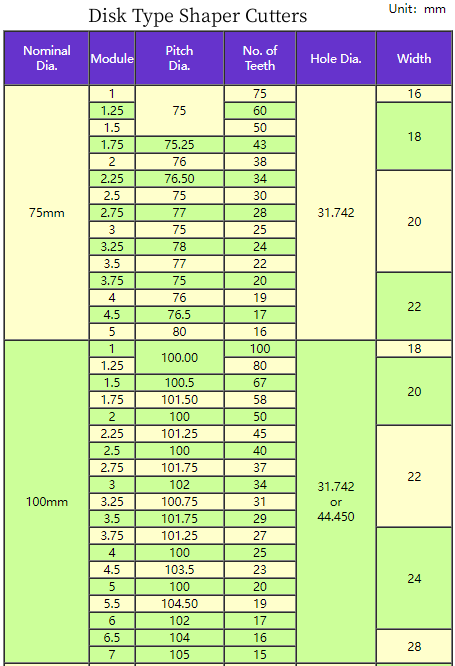

Disk Type Shaper Cutters with JIS B 4356
These shaper cutters are 20° PA, non-topping finishing cutters, with full depth.
The above shaper cutters can be supplied in HSS M2, M35, M42, ASP2052, S390 material with AP coating
